Titan IVS Slicer
The Titan IVS Slicer leads the world with real-time scanning that can grade and sort 2000 slices per minute at 97% accuracy to the human eye. Able to recognize fat to lean content and seamlessly grade output as primary or secondary product, the Titan IVS Slicer has revolutionized the field.

Overview
The Titan IVS Slicer leads the world with real-time scanning that can grade and sort 2000 slices per minute at 97% accuracy to the human eye. Able to recognize fat to lean content and seamlessly grade output as primary or secondary product, the Titan IVS Slicer has revolutionized
the field.
Emerging from four years of intense research and development, Titan’s patented Involute Vision Technology, which gives the IVS its name, delivers precise weight control and grading at the touch of a button. Along with unparalleled hygiene, absolute precision, maximum durability and optimum performance, Titan’s IVS technology lifts processing capability to a new level.
Open frame construction and barrier- free guarding ensures that the Titan IVS achieves CAT 4 safety and optimum sanitation standards.
In 2012 Titan were proud to install the first of four high-speed 3D slicing lines for Maple Leaf Consumer Foods at its Winnipeg processing facility in Manitoba Province, Canada.
Key Features
Specifications

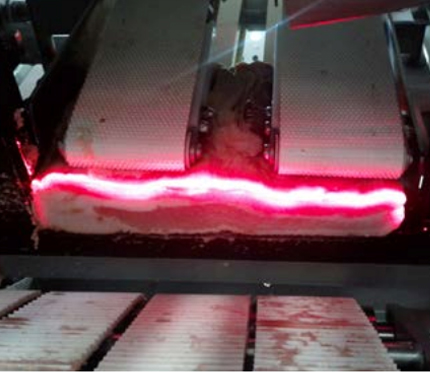

INVOLUTE BLADE TWIN GRIPPER VISION SYSTEM
- Flat bed is suitable for wide/flat products, while the bed’s unique design provides greater stability and improved slice quality for a wide range of products with use of conveyor driven feed.
- Maximum aperture size 160 mm high x 330 mm wide.
- Maximum product length 1200 mm as standard, additional length can be accommodated.
- Blade diameter 515 mm.
- The Round blade is fully interchangeable with an involute blade if required at any time.
- Optional Hard Chrome or Teflon coated blades.
- Twin motor orbital blade system independently controls head and blade speed providing high accuracy slicing on the most demanding products over a wide temperature range.
- Slice thickness 0.25 – 25 mm (product dependent).
- Maximum head speed variable up to 1600 revolutions per minute.
- Product temperature range 8oC (17.6oF) to +5oC (41oF), (product dependent).
- Adjustable angle slicing bed pneumatically activated and automatically controlled from program setting.
- Variable Pitch Head.
- On board modem for remote communication diagnostics carried out over the Internet.
- Slice bed lowers and raises automatically at the end of each slicing cycle dramatically easing loading effort and enabling optimum bed angle slicing without influencing loading difficulty.
- Productivity statistics captured and displayed. automatically, including idle time per shift, downtime, and downtime cause per shift.
- 1000 user configurable & password protected Auto program settings.
- Operator friendly touch screen control panel.
- Control electronics configured in readily available P.L.C. hardware.
- Electronic product position sensing for minimum wastage.
- Feed Conveyor belt driven by servo motor for ultimate product control.
- Customized designed shear-edges changeable in 30 seconds.
- Servo motor ball screw product feed control, the ultimate in position control with slice denial functionality and the selectable option of continuous or incremental product feeding.
- Heavy duty all types of product gripper, including removable stripper plate for minimum end waste.
- Blade sharpener.
- Blade remover.
- Easy clean design based upon ANSI/NSF/3-A hygiene standards.
- Overall dimensions 2182 mm long x 1487 mm wide x 2253 mm high.
- Power supply 3-phase 25amps.
- Air supply 6 bar (87 psi).
- Separate push button feed control to reduce wear and tear on operator panel.
- Anti splash drain/vents in the base of all enclosures.
- Slicing head angle sensing and staggered head/blade start sequence for improved lubrication.
- Synchronized front feed conveyor precisely controls product position irrespective of natural product stretch or movement in the gripper.
- Tension is controlled individually on each tension finger to ensure reliable operation of the front feed roller when slicing 2 or more uneven rolls at the same time.
- Also available in involute blade configuration.
- Monitored safety switches fitted to all removable guards.
- For the ultimate in operator safety, the out-feed, under conveyor and blade sections of the Titan Slicer are totally isolated by tamper proof hinged polycarbonate full height guards.
- Guard infeed with automatic guard opening.
- Available in three supply voltage options 575 volts 480 volts 220 volts three phase.
