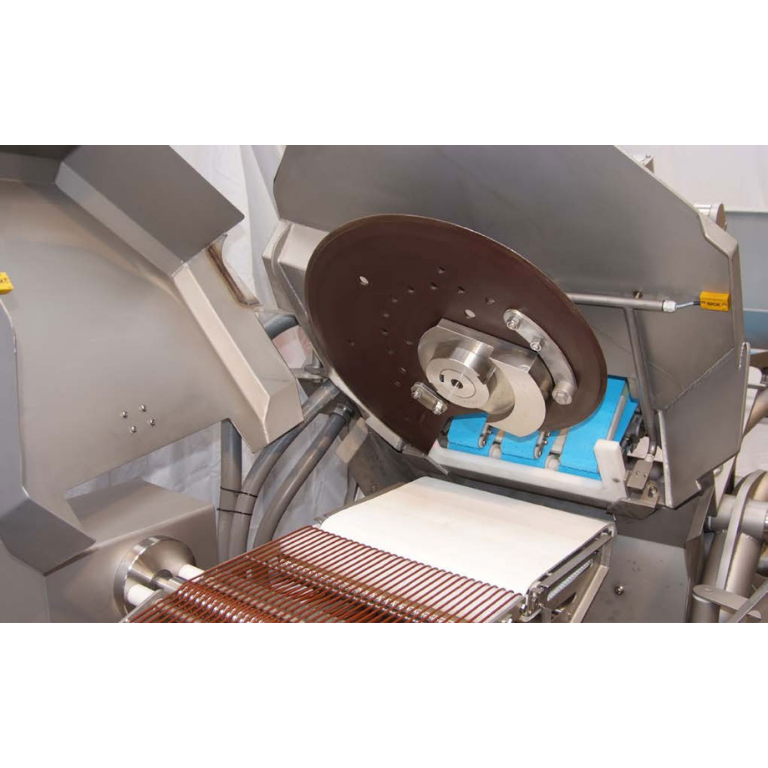

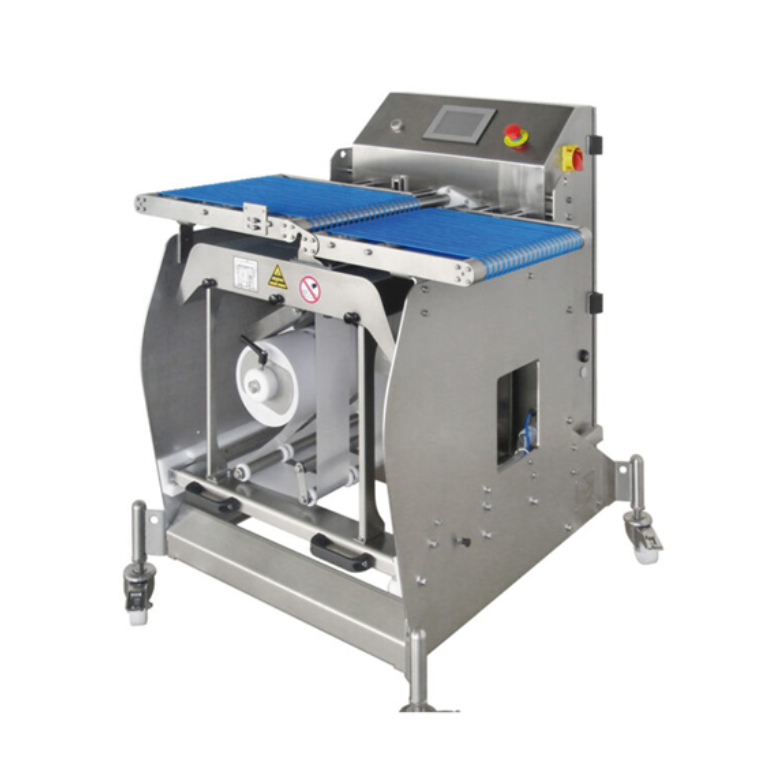

Pre-trimmer Side Strapper
External to the slicer the trimmer is easy to clean and easy to clear blockages in the line without affecting the throughput of the slicing system.
Specifications
- Flatbed is suitable for wide/flat products, while the bed’s unique design provides greater stability and improved slice quality for a wide range of products with use of conveyor driven feed. Maximum aperture size 160 mm high x 380 mm wide
- Maximum product length 1600 mm as standard, additional length can be accommodated
- Trimmer Blade diameter 255 mm
- Optional Hard Chrome or Teflon coated blades
- Pre trim thickness 0.25 – 75 mm (product dependent)
- Maximum trimmer speed variable up to 800 revolutions per minute. Blade speed range 40 to 800 rpm
- Product temperature range 8°C (17.6°F) to +5°C (41°F), (product dependent)
- 6 Inch control touch panel with USB back up
- Automatic adjustable width controlled from program settings
- On board ethernet for remote communication diagnostics carried out over the internet
- Productivity statistics captured and displayed automatically, including idle time per shift, downtime and downtime cause per shift
- 1000 user configurable & password protected auto program settings.
- Operator friendly touch screen control panel
- Control electronics configured in readily available P.L.C. hardware.
