Titan Slicer 500

Leading the field in design innovation, the Titan 500 Slicer delivers quality, precision, performance and reliability in a streamlined, ultra-hygienic, stainless steel frame.

Overview

Leading the field in design innovation, the Titan 500 Slicer delivers quality, precision, performance and reliability in a streamlined, ultra-hygienic, stainless-steel frame.

With the Titan 500’s unique electronic adjustment capability, pack weight is controlled as it’s sliced, consistently delivering ‘on weight’ packs and removing the need for vision system.

Producing perfect slices from 0.5 to 50mm at up to 2,000rpm, the Titan 500 exceeds expectations on every scale.

Operator interface touch-screen controls ensure maximum efficiency, simplifying product and presentation changeovers, and minimizing variations in the process. State-of- the-art motion control ensures that

the pre-sliced product is adjusted both vertically and horizontally in order to achieve the ideal slicing position and flawless conveyor transfer.

The Titan 500 Slicer is available for purchase with or without a gripper. Talk to us about how we can custom build a Titan continuous feed gripper to meet your specifications and further enhance productivity.

Key Features

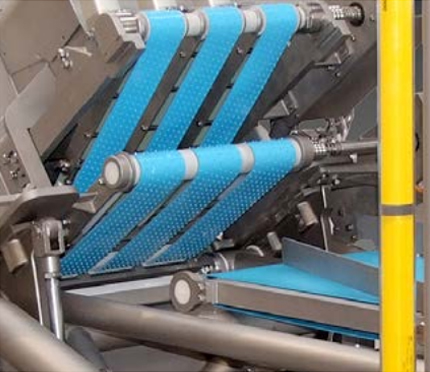

A patented loading system ensures unbeatable levels of hygiene

One of the widest throats in the market to process the widest range of products

A choice of an automatic gripper or continuous feed makes easy work of loading and unloading

Specifications

INVOLUTE BLADE TWIN GRIPPER VISION SYSTEM

  • Flat bed is suitable for wide/flat products, while the bed’s unique design provides greater stability and improved slice quality for a wide range of products with use of conveyor driven feed.
  • Maximum aperture size 160 mm high x 330 mm wide.
  • Maximum product length 1200 mm as standard, additional length can be accommodated.

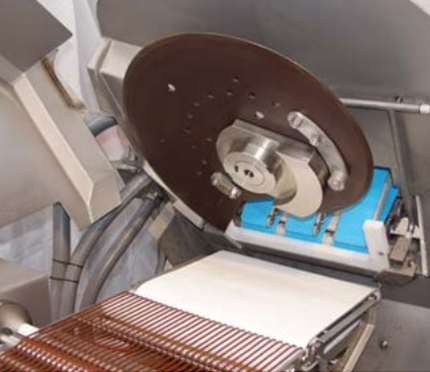

  • Blade diameter 515 mm.
  • The Round blade is fully interchangeable with an involute blade if required at any time.
  • Optional Hard Chrome or Teflon coated blades.
  • Twin motor orbital blade system independently controls head and blade speed providing high accuracy slicing on the most demanding products over a wide temperature range.
  • Slice thickness 0.25 – 25 mm (product dependent).
  • Maximum head speed variable up to 1600 revolutions per minute.
  • Product temperature range 8oC (17.6oF) to +5oC (41oF), (product dependent).
  • Adjustable angle slicing bed pneumatically activated and automatically controlled from program setting.
  • Variable Pitch Head.
  • On board modem for remote communication diagnostics carried out over the Internet.
  • Slice bed lowers and raises automatically at the end of each slicing cycle dramatically easing loading effort and enabling optimum bed angle slicing without influencing loading difficulty.
  • Productivity statistics captured and displayed. automatically, including idle time per shift, downtime, and downtime cause per shift.
  • 1000 user configurable & password protected Auto program settings.
  • Operator friendly touch screen control panel.
  • Control electronics configured in readily available P.L.C. hardware.
  • Electronic product position sensing for minimum wastage.
  • Feed Conveyor belt driven by servo motor for ultimate product control.
  • Customized designed shear-edges changeable in 30 seconds.
  • Servo motor ball screw product feed control, the ultimate in position control with slice denial functionality and the selectable option of continuous or incremental product feeding.
  • Heavy duty all types of product gripper, including removable stripper plate for minimum end waste.
  • Blade sharpener.
  • Blade remover.
  • Easy clean design based upon ANSI/NSF/3-A hygiene standards.
  • Overall dimensions 2182 mm long x 1487 mm wide x 2253 mm high.
  • Power supply 3-phase 25amps.
  • Air supply 6 bar (87 psi).
  • Separate push button feed control to reduce wear and tear on operator panel.
  • Anti splash drain/vents in the base of all enclosures.
  • Slicing head angle sensing and staggered head/blade start sequence for improved lubrication.
  • Synchronized front feed conveyor precisely controls product position irrespective of natural product stretch or movement in the gripper.

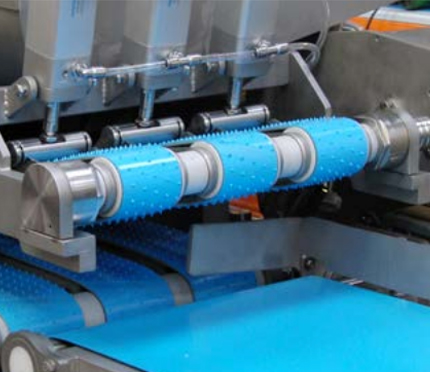

  • Tension is controlled individually on each tension finger to ensure reliable operation of the front feed roller when slicing 2 or more uneven rolls at the same time.
  • Also available in involute blade configuration.
  • Monitored safety switches fitted to all removable guards.
  • For the ultimate in operator safety, the out-feed, under conveyor and blade sections of the Titan Slicer are totally isolated by tamper proof hinged polycarbonate full height guards.
  • Guard infeed with automatic guard opening.
  • Available in three supply voltage options 575 volts 480 volts 220 volts three phase.

Contact us today to learn more about how Titan Slicers can transform your production line.
